OFFICIAL PRODUCT INFORMATIONTR SERIES

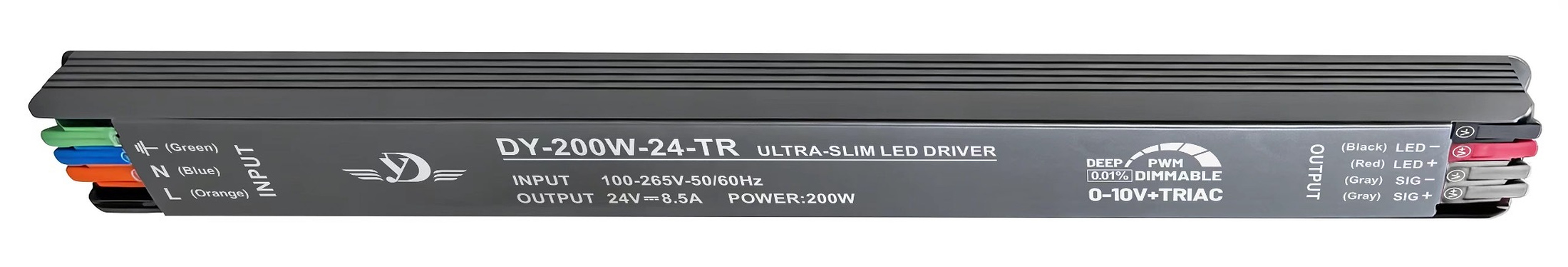

DY-200W-12/24/48-TR
Ultra-slim 0–10V / TRIAC dimmable LED driver
Verified 200W TR Series ultra-slim constant-voltage driver with separate 12V, 24V and 48V versions, deep PWM dimming and optional TRIAC or 0/1–10V control.
Factory directOEM availableEngineer support
PRODUCT ADVANTAGES
Designed for reliable
LED performance.
01Ultra-slim aluminum profile
02TRIAC or 0/1–10V dimming
03Deep PWM dimming
04Snap-in terminals
05Semi-potted construction
063-year warranty
KEY SPECIFICATIONS
Rated power200W
ModelsDY-200W-12-TR · DY-200W-24-TR · DY-200W-48-TR
Output optionsDC 12V ±5% / 24V ±5% / 48V ±5%
Rated current (12V / 24V / 48V)16.7A / 8.3A / not confirmed
Dimming optionsTRIAC or 0/1–10V
Dimming technologyDeep PWM dimming · promotional material states down to 0.01%
Input voltageAC 100–265V · 50/60Hz
Typical AC current4.4A @ 100V / 2.3A @ 240V
Efficiency (12V / 24V / 48V)≥83% / ≥88% / —
Ripple and noise (12V / 24V / 48V)300mVp-p / 350mVp-p / —
Load stability / voltage tolerance±5% / ±0.5%
Setup / rise / hold-up time200ms / 50ms / 20ms
Cold-start inrush current≤50A
Power factor / leakagePF ≥0.5 / ≤5mA @ 260Vac
ProtectionsShort circuit · overload (105–200%) · over-current · over-voltage
RecoveryHiccup mode · automatic recovery after fault removal
Cooling / constructionFree-air convection · aluminum profile · semi-potted
TerminalSnap-in connection terminals
Operating environment−10°C to +50°C · 20–90% RH, non-condensing
Storage environment−20°C to +85°C · 10–95% RH
Dimensions301.5 × 26.5 × 23.5mm
CertificationsCE · RoHS
Warranty3 years
Specifications are based on DY LIGHTS product information. Final electrical and mechanical data should be confirmed in the latest model datasheet before ordering.
